AI Email Lead Processing & CRM Automation

Project Overview

The AI Email Lead Processing & CRM Automation system was developed to streamline lead management by eliminating manual email processing. The platform continuously monitors incoming business emails, identifies potential customer enquiries, extracts key business information using AI, validates the extracted data, stores it in a centralized CRM database, and immediately alerts the sales team for timely follow-up.

Business Background

Businesses often receive customer enquiries through email, requiring staff to manually review messages, extract relevant details, create CRM entries, and notify the appropriate team members. This repetitive process is time-consuming, prone to human error, and can delay responses to potential customers.

To address these challenges, an intelligent email processing workflow was developed to automate the entire lead capture process while ensuring data accuracy and consistency.

Business Challenges

• Manual review of incoming emails
• Inconsistent lead data entry
• Delayed customer response
• Unstructured email formats
• HTML email parsing complexity
• Duplicate lead creation
• Time-consuming CRM updates

Project Objectives

• Automatically monitor business emails
• Identify genuine customer enquiries
• Extract structured lead information using AI
• Store validated records in MySQL
• Notify sales teams instantly
• Eliminate manual data entry
• Improve lead response time

Solution Architecture

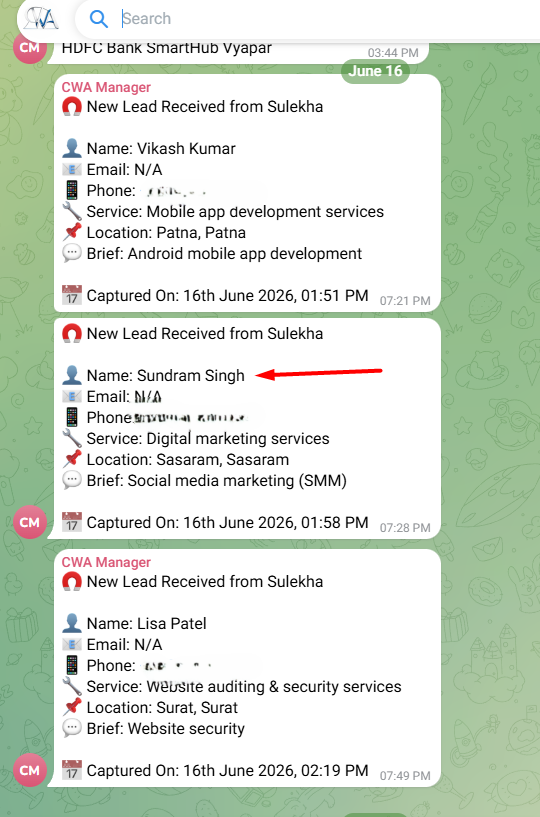

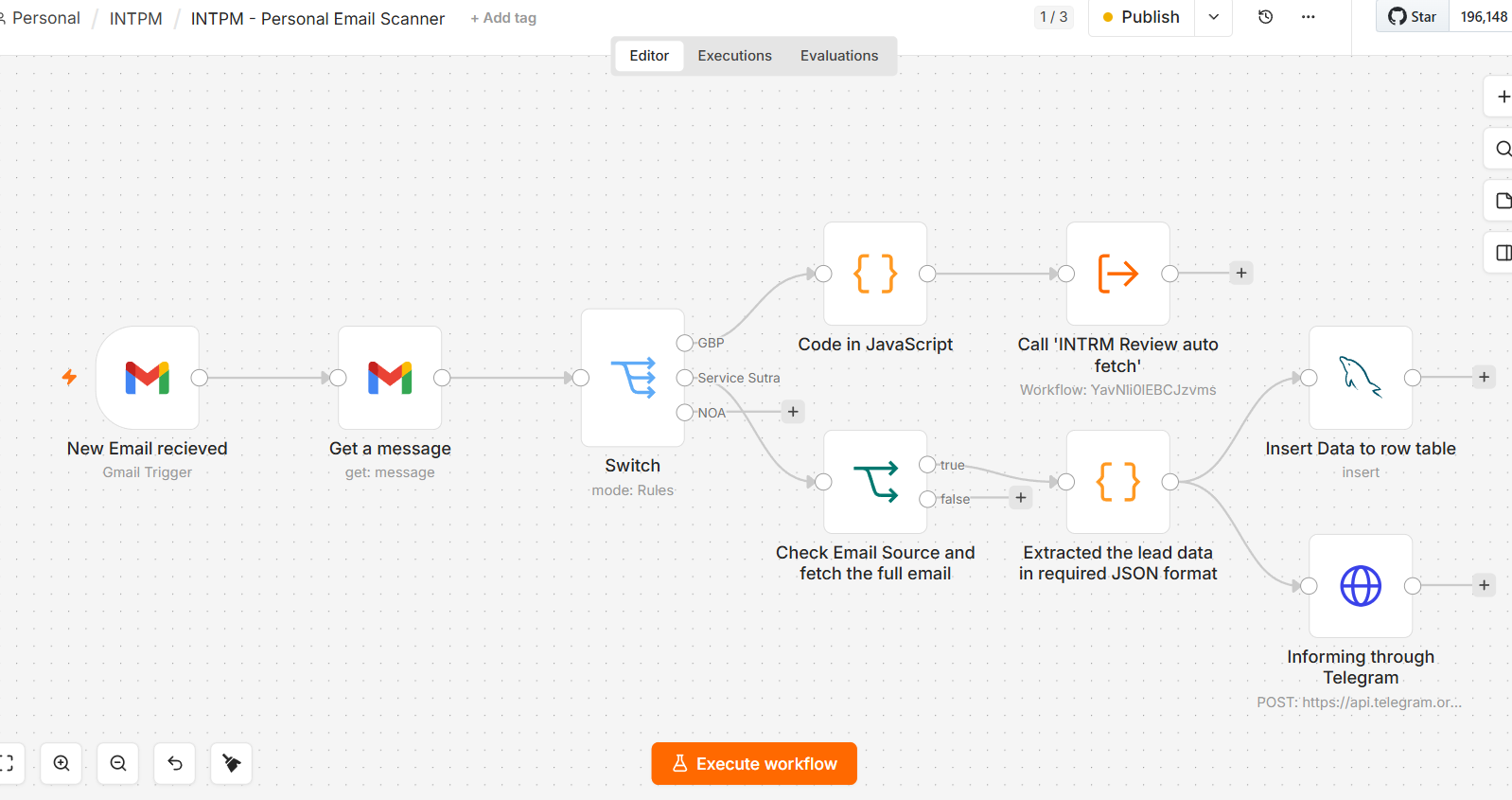

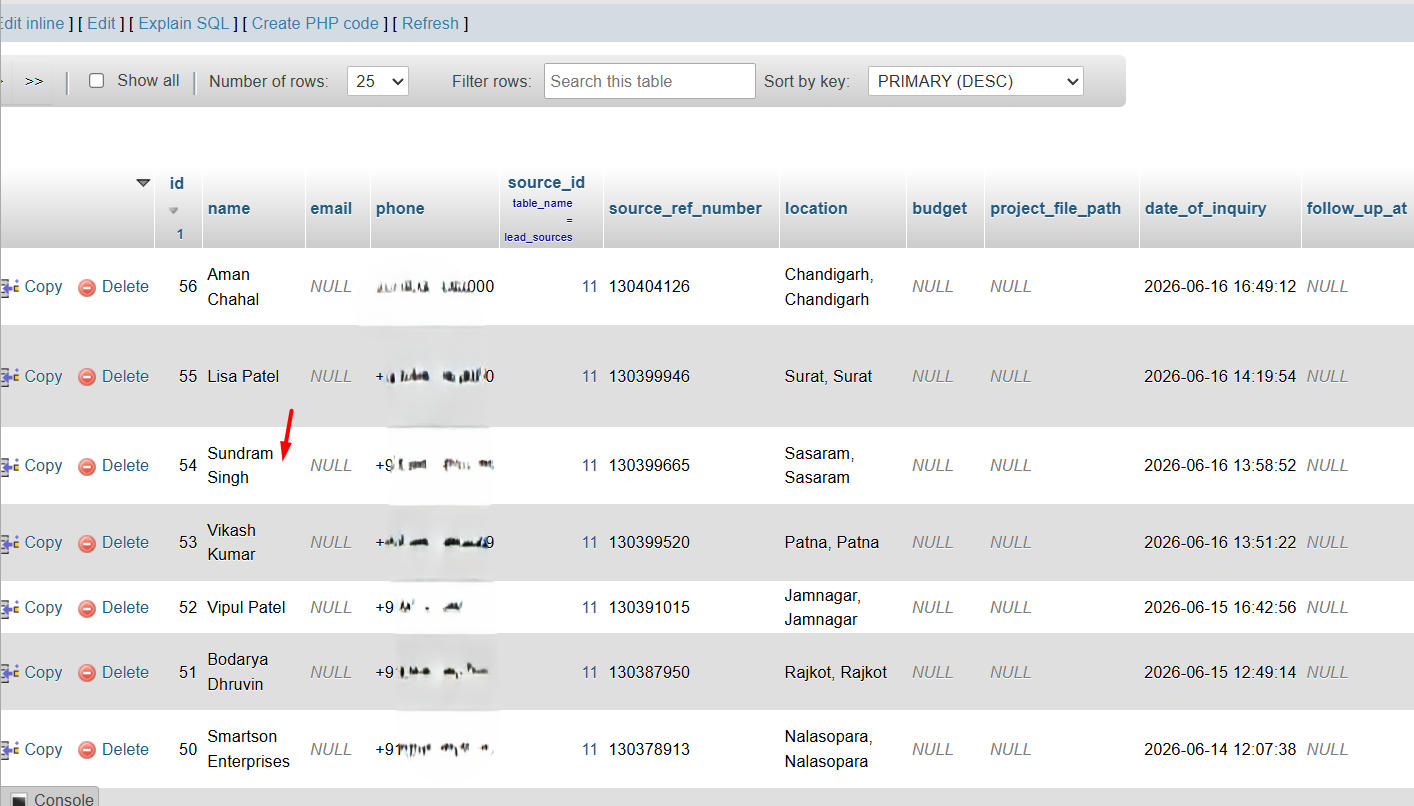

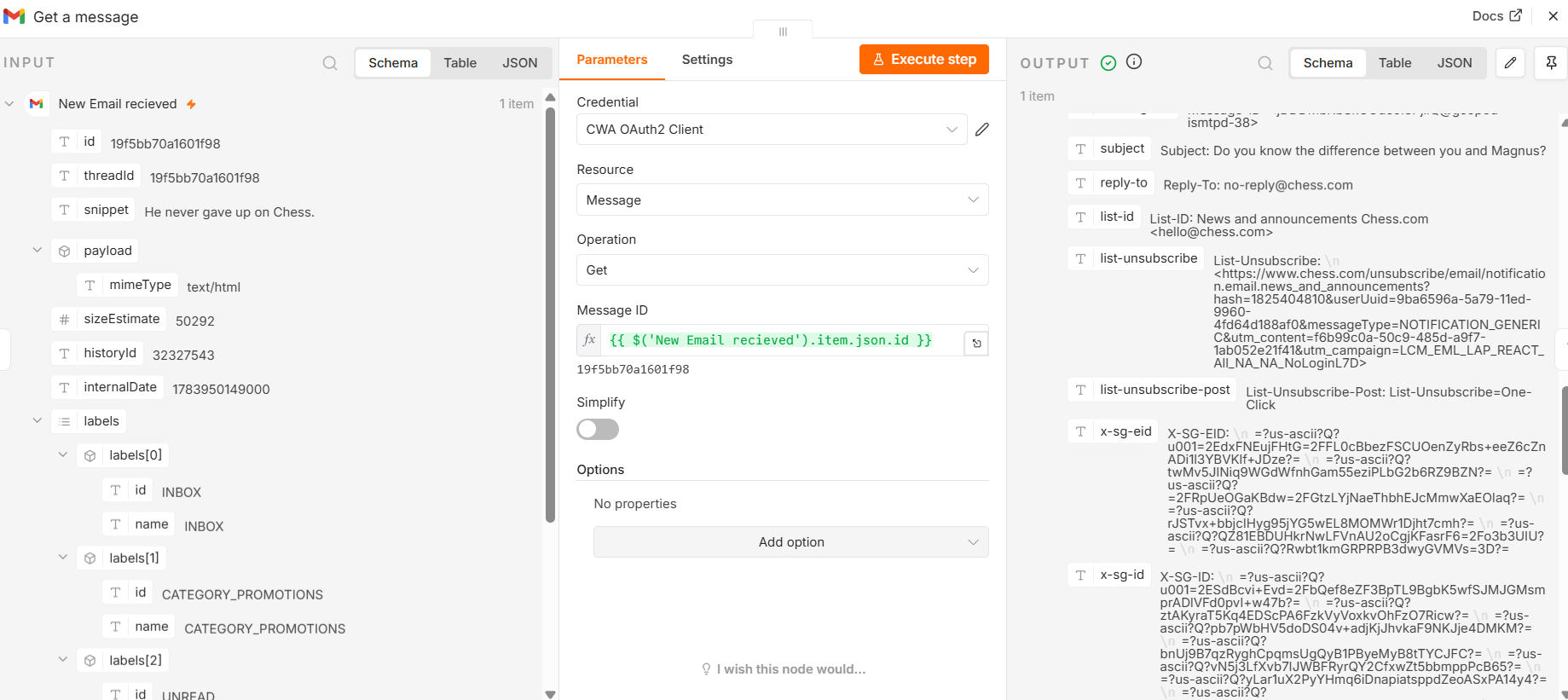

The system uses Gmail as the primary input source, where new business emails trigger an automated n8n workflow. Email content is cleaned and converted into structured text before being processed by a Large Language Model (Groq) using predefined JSON schemas. Extracted information is validated, stored in a MySQL database, and distributed to internal teams through Telegram notifications for immediate action.

The modular architecture enables additional processing stages, integrations, and AI capabilities to be added without modifying the existing workflow.

Core Modules

• Gmail Email Monitor
• HTML Email Parser
• AI Information Extraction
• JSON Validation Engine
• Lead Qualification
• CRM Database Integration
• Telegram Notification System
• Duplicate Detection
• Workflow Logging
• Error Handling

Major Features

• Real-time email monitoring
• AI-powered lead extraction
• Structured JSON generation
• Automatic CRM entry creation
• Telegram notifications
• Duplicate lead prevention
• Modular workflow design
• Error recovery mechanisms
• Execution monitoring
• Expandable automation architecture

Automation & Intelligence

The platform leverages Large Language Models to understand unstructured email content and transform it into structured business data. Instead of relying on rigid templates, AI enables the system to process enquiries written in different formats while maintaining consistent database records.

Third-Party Integrations

• Gmail API
• Groq API
• Telegram Bot API
• MySQL
• REST APIs

Technology Stack

Automation Engine
n8n

Database
MySQL

Infrastructure
Docker, Ubuntu Server, Cloudflare, Caddy

AI Services
Groq LLM

Communication
Telegram Bot API

Email Services
Gmail API

Security & Data Protection

• Secure API credential management
• Environment-based configuration
• Controlled workflow permissions
• Database validation
• Structured JSON verification
• Error logging

Performance Optimizations

• Event-driven workflow execution
• Modular workflow components
• AI response validation
• Optimized database operations
• Duplicate detection before insertion
• Lightweight notification system

Responsive Experience

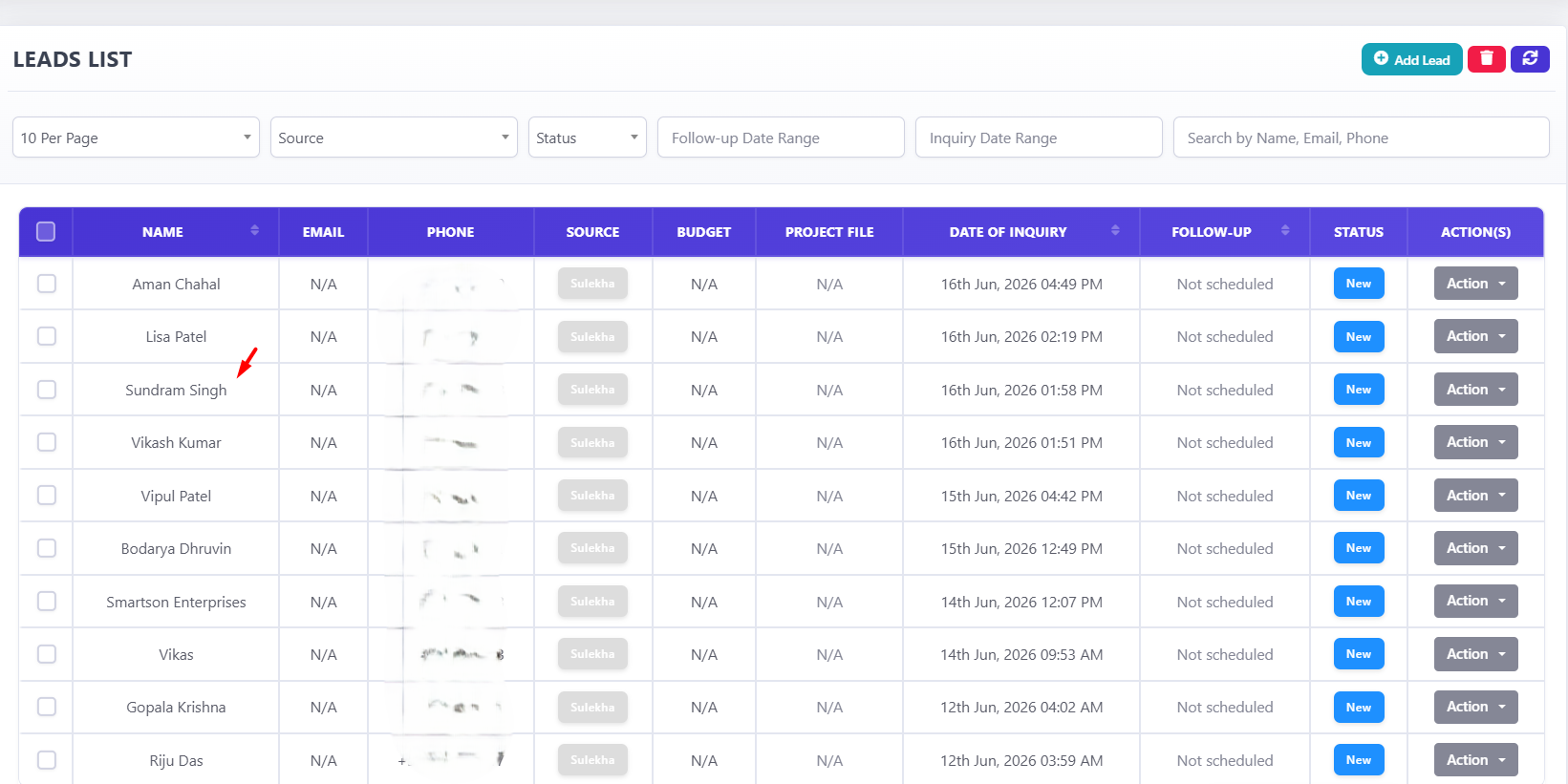

The automation operates entirely in the background while providing administrators with real-time visibility into workflow execution and processed leads through the automation dashboard and CRM interface.

Development Challenges

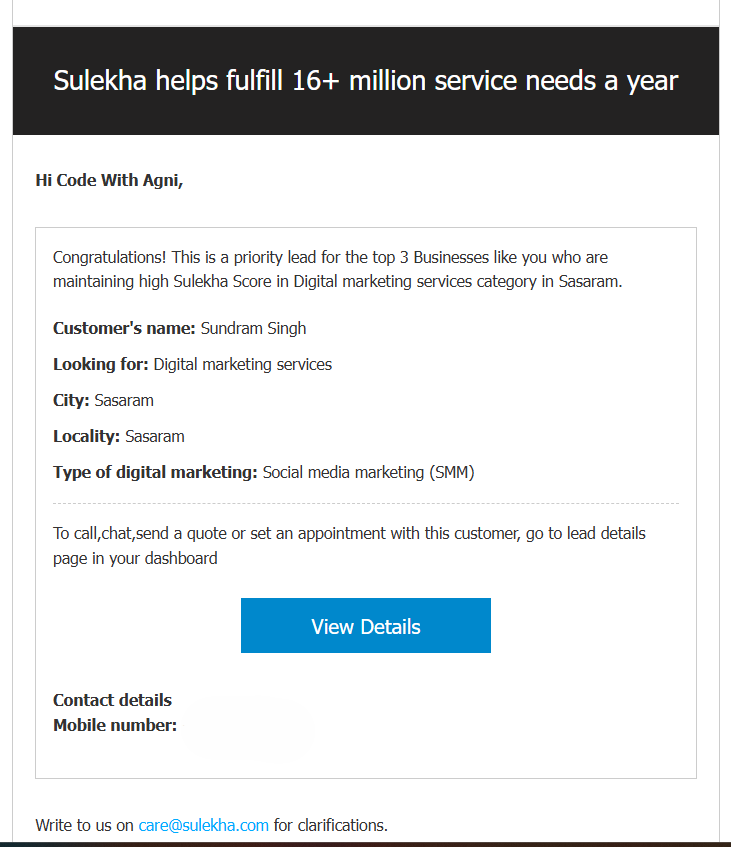

One of the primary technical challenges was accurately extracting structured business information from highly inconsistent HTML email formats. To improve reliability, the workflow incorporates content sanitization, JSON schema validation, AI-assisted extraction, and database validation before creating CRM records.

Business Outcomes

• Eliminated repetitive manual data entry
• Reduced lead processing time
• Improved CRM data consistency
• Faster sales notifications
• Standardized customer information
• Increased operational efficiency

Future Enhancements

• Multi-language email support
• Email attachment analysis
• OCR integration for documents
• Automatic lead scoring
• AI-generated follow-up suggestions
• CRM analytics dashboard

Key Takeaways

This project demonstrates expertise in AI-assisted document understanding, workflow automation, email processing, structured data extraction, CRM integration, and intelligent business process automation. By combining AI with workflow orchestration, the platform transforms unstructured customer communications into actionable business intelligence with minimal manual intervention.
